| Length | 200mm
(8") |
| Width | 160mm (6.3") |
| Height | 22mm
(7/8") |
| Body Material | Filled Nylon |
| Max Holding force. Full face | Max
150kg (330lbs) |
| Seal Channels | @47.5mm
spacing @ 1 7/8" spacing |
| 4 Fixing holes | 6.35mm 1/4" |
|
Air Consumption |
26
litres/min 1cfm |
| Max supply pressure | 800kPa 115psi |
| Vacuum
generated @ 800kpa 115psi |
-88kpa |

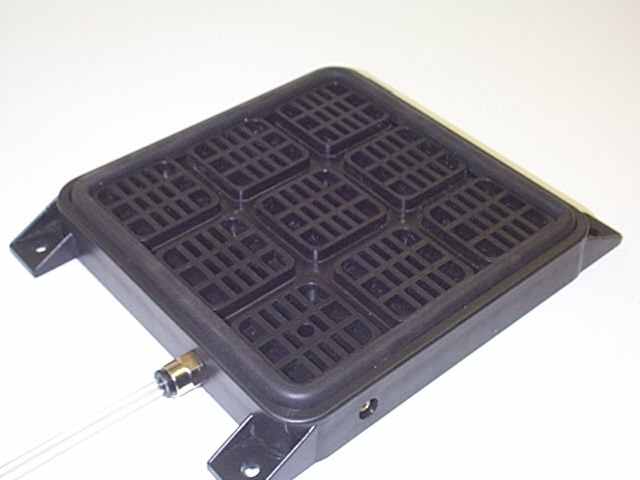

VC4 Dimensions and specifications |
|
